Fyne Audio

Fyne Audio FA502iC 8" IsoFlare In-Ceiling Loudspeaker (each)

Fyne Audio FA502iC 8" IsoFlare In-Ceiling Loudspeaker (each)

SALE Sold out
Regular price $523.50 In stock now!
Regular price $523.50 Sale price $523.50 In stock now!
Shipping calculated at checkout.

Product questions? Found a lower price?

Let us know: 909.931.9686 or chat.

View full details

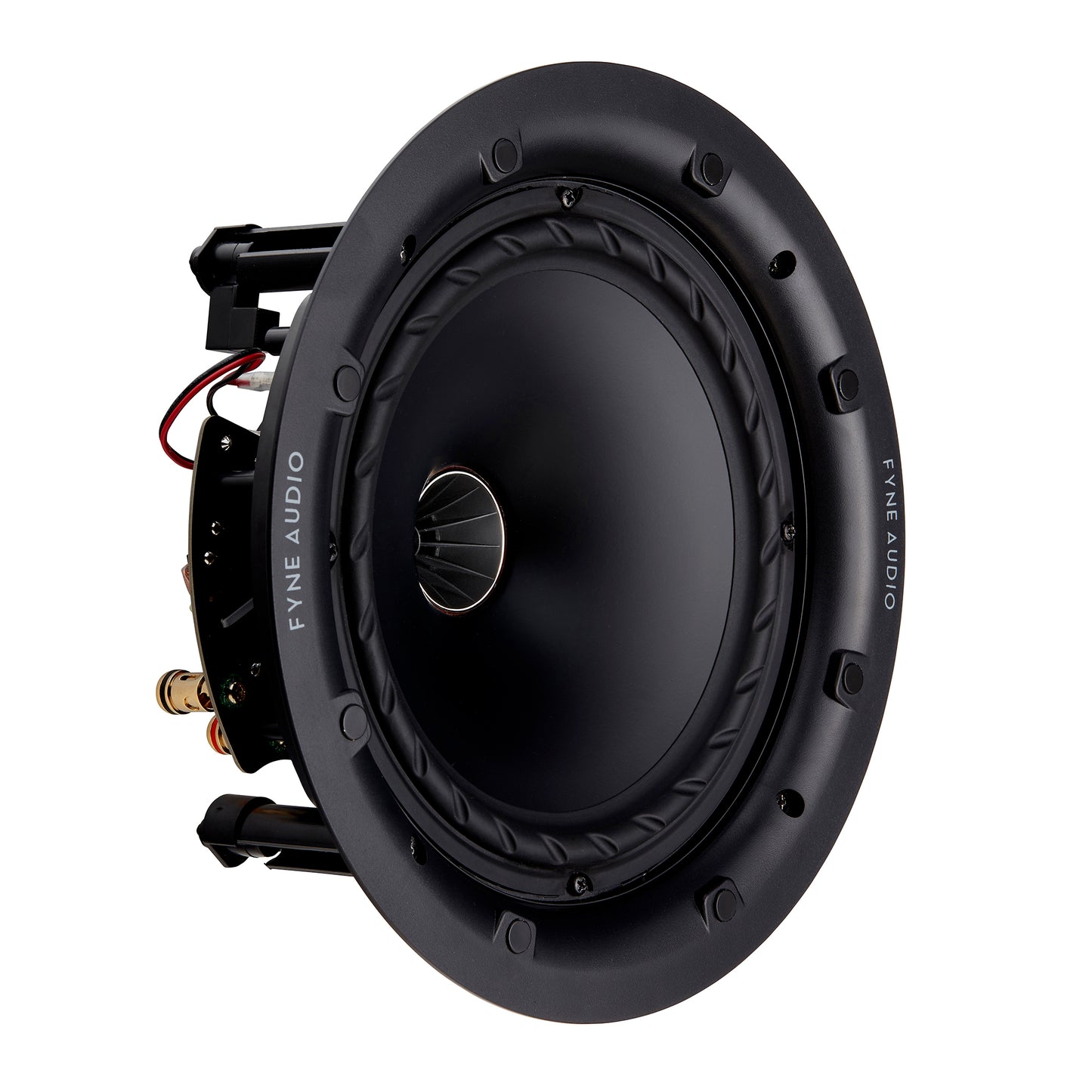

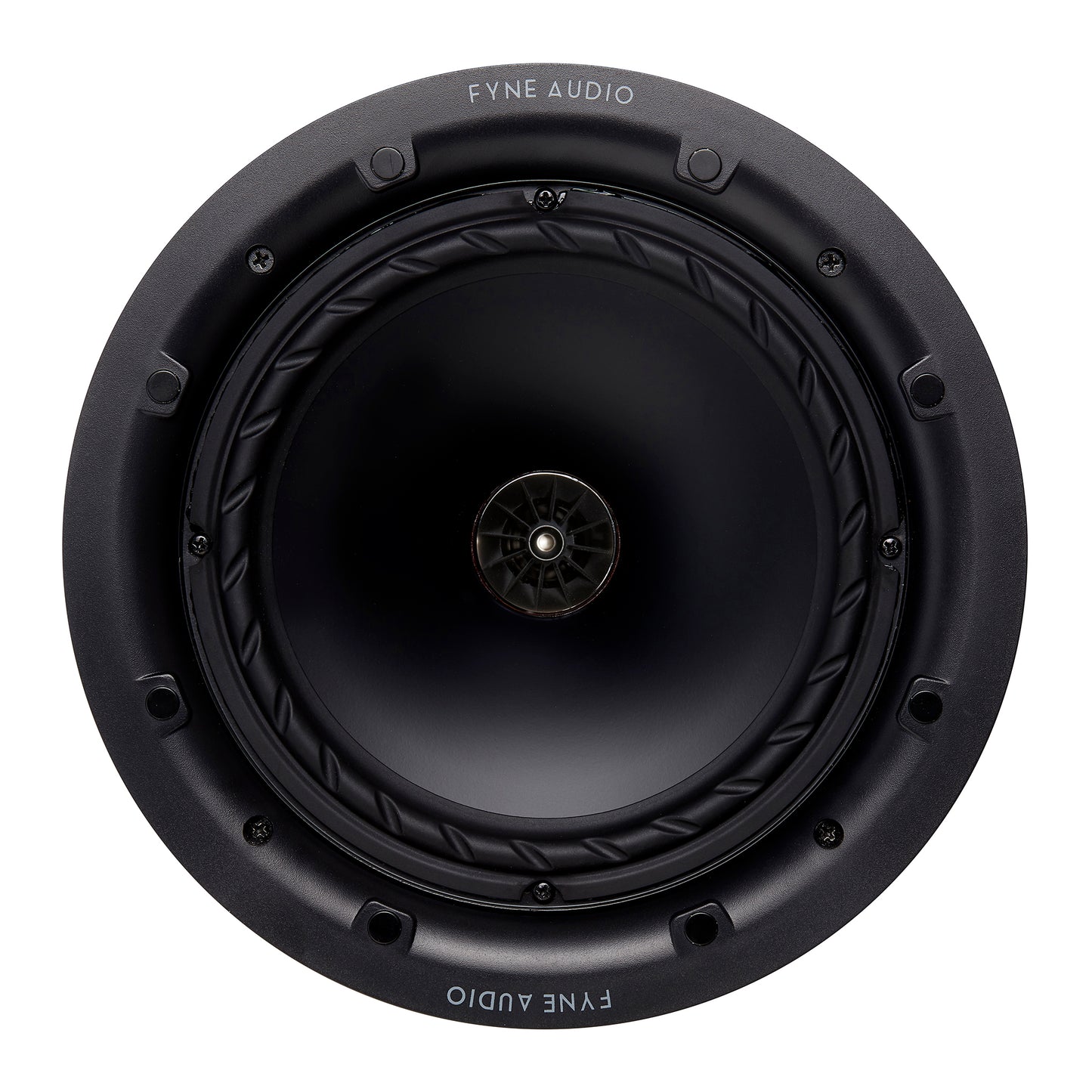

Fyne Audio FA502iC 8" IsoFlare In-Ceiling Loudspeaker (each)

With an 8" IsoFlare driver and 25 mm titanium dome compression tweeter

Delivering all the detail, impact, and class-leading imaging of Fyne’s F500 series loudspeakers, the FA502iC brings true audiophile performance to home install loudspeaker design. Built around the F500 series' prestigious 8” IsoFlare point source driver with infinite baffle-tuned crossover, the design offers high efficiency, high power handling, and a 360-degree isotropic dispersion pattern. The result is a rich, detailed sound with a wide soundstage and perfect time alignment across the frequency spectrum.

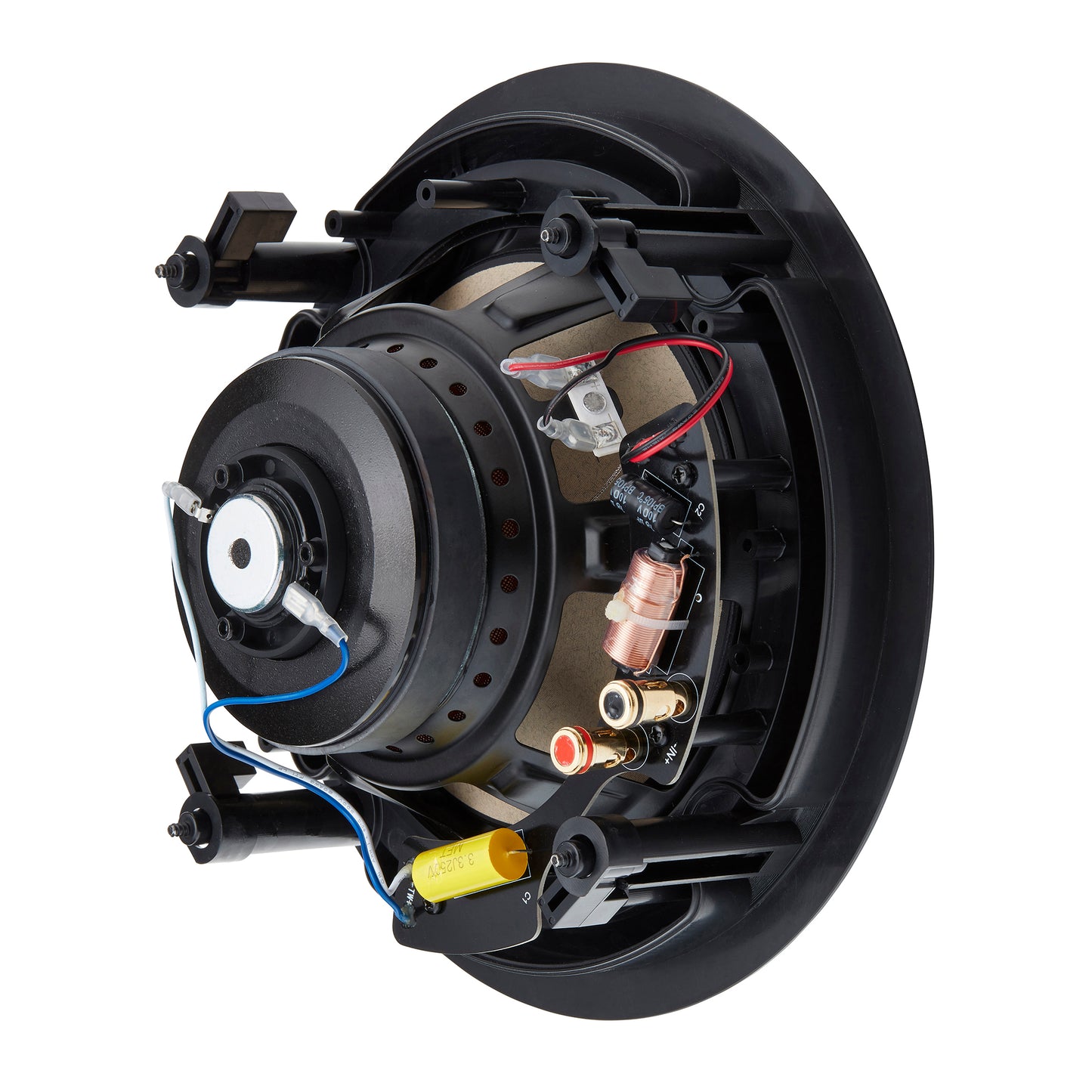

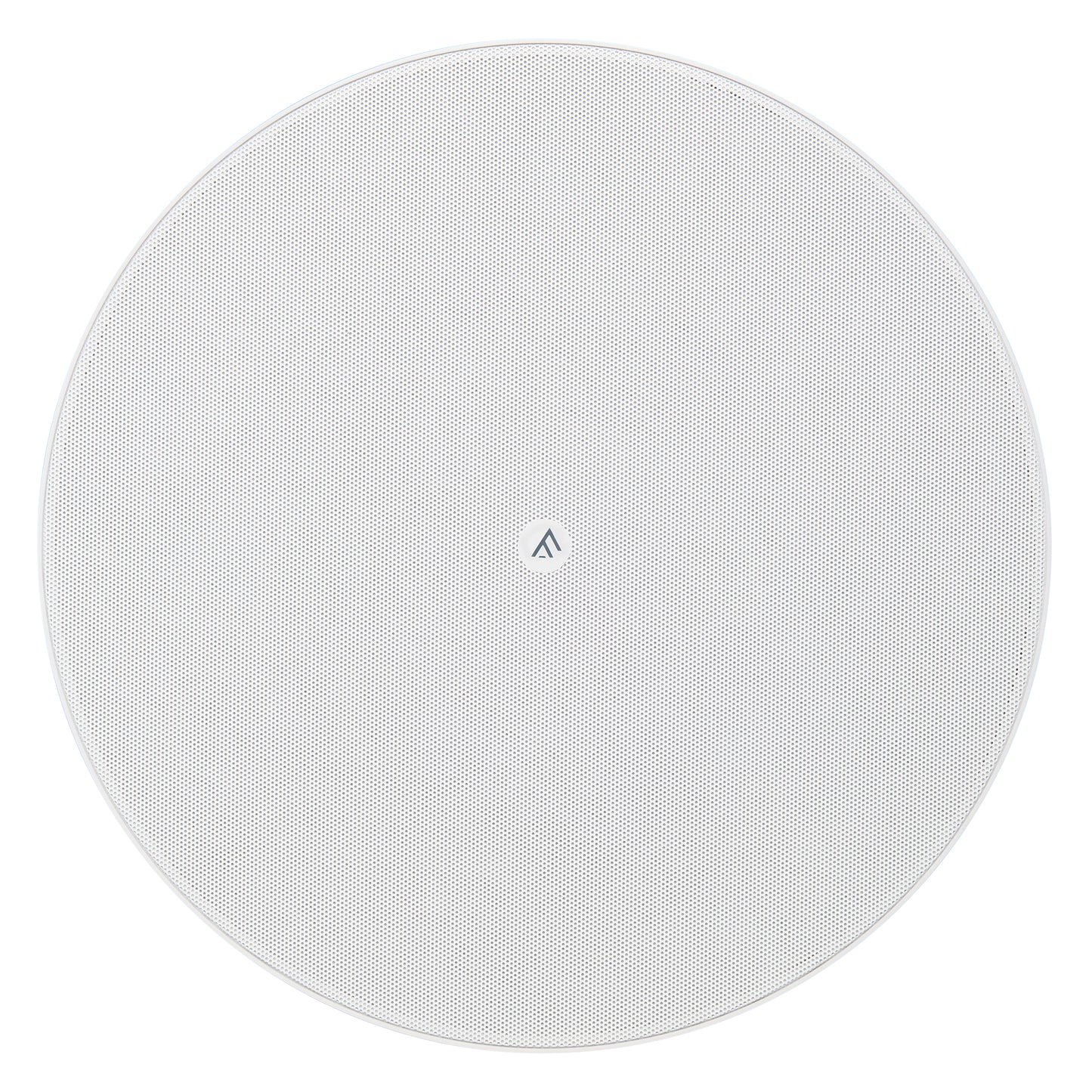

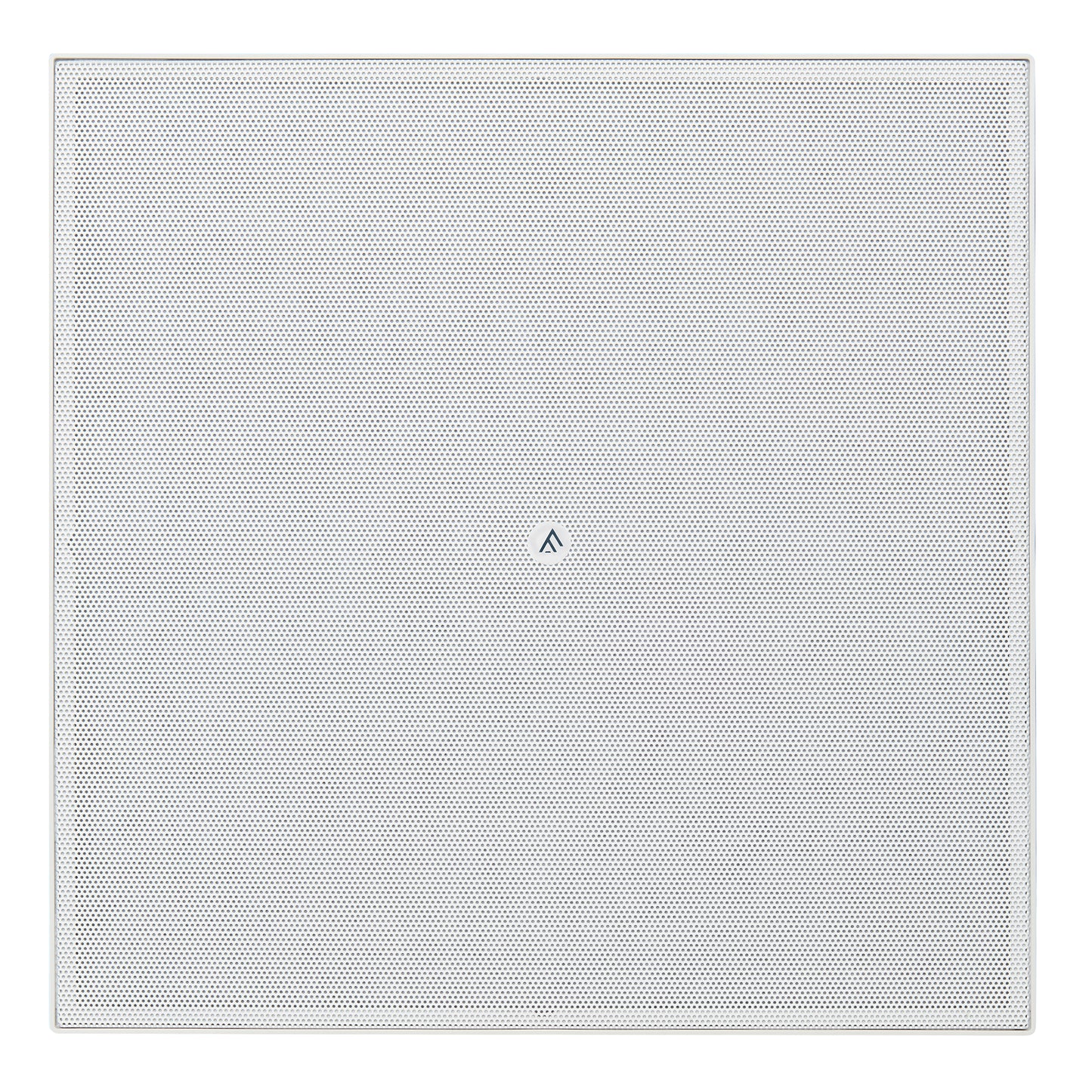

Ideal for in-ceiling or in-wall custom applications in the home, the chassis offers simple self-aligning clamps, spring clamp cable terminals and comes supplied with both round and square, fully paintable low-profile magnetic grilles. The grilles are further enhanced with an acoustic scrim cloth to ensure the FA502iC blends seamlessly into the home.

Specifications

Type: 2-way IsoFlare loudspeaker for in-ceiling or in-wall application

Sensitivity: 91 dB

Nominal Impedance: 8 ohm

Frequency Response (-6 dB): 35 Hz-34 kHz

Drivers
Mid/Bass:
1 x 8" (200 mm) IsoFlare point source driver, multi-fiber
High: FyneFlute surround with 25 mm titanium dome compression

Crossover Frequency: 1.7 kHz

Crossover Type: Passive 2nd order low pass, 1st order high pass

Dimensions
Dia. x Depth: 10.6" x 4.8” (273 x 123 mm)
Grille (Round, Square): 11.1" (281 mm), 11.1" x 11.1” (281 x 281 mm)
Cut-Out Diameter: 9.8" (248 mm)
Depth behind Mounting Surface: 4.7” (120.5 mm)
Clamp Travel: 0.2" - 2” (5 - 50 mm)
Suggested Min. Vol.: 18 L

Weight: 5.5 lb.
