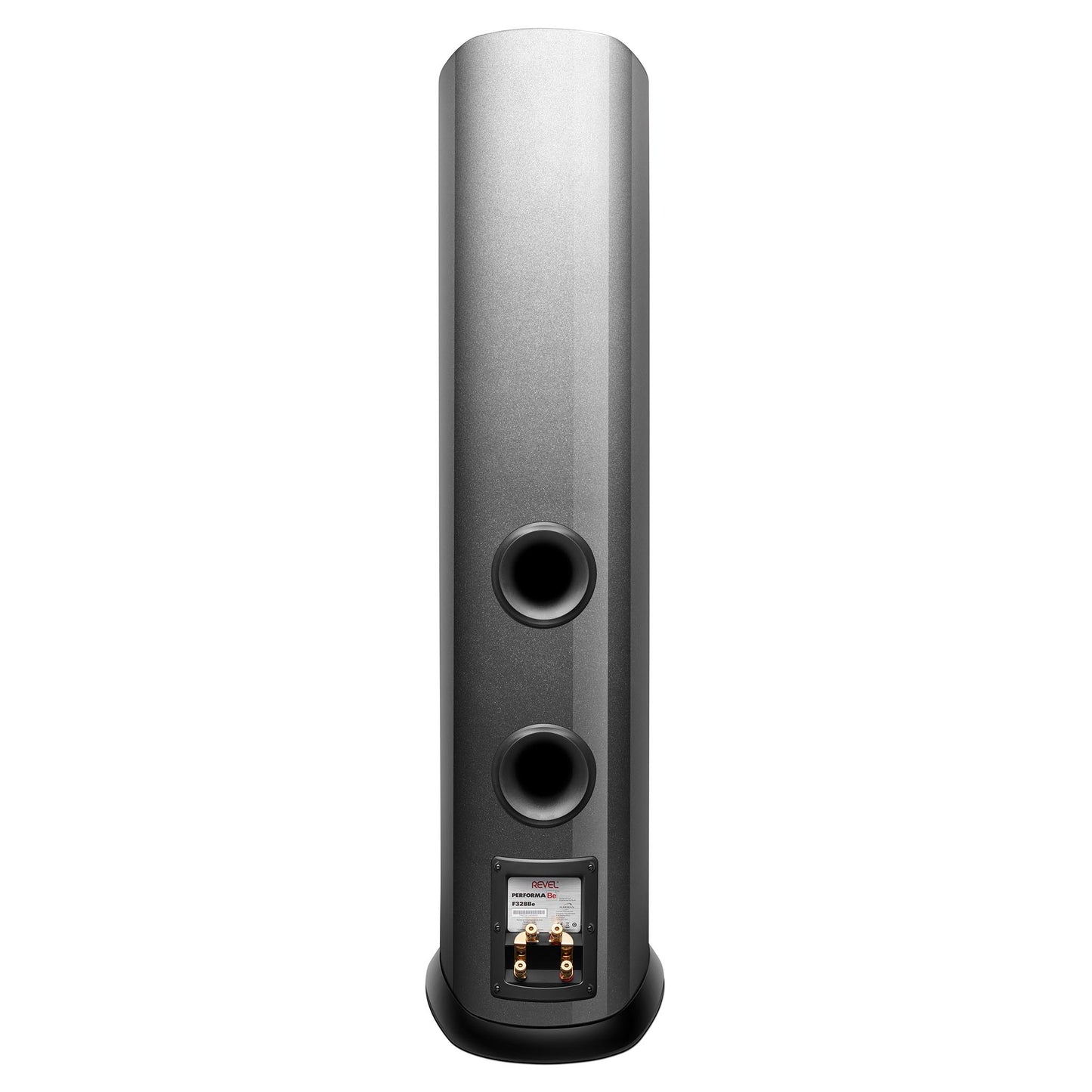

Revel F328Be Floorstanding Loudspeaker

The Revel F328Be is the flagship floorstanding loudspeaker in the award-winning PerformaBe series. Designed for listeners seeking uncompromised performance, the F328Be offers a full-range, high-output solution built around Revel’s most advanced transducer and waveguide technologies.

Flagship Tweeter and Sixth-Generation Waveguide

At the core of the F328Be is a 1" (25 mm) beryllium dome tweeter driven by massive 3.3" (85 mm) dual ceramic magnets. This high-performance tweeter is matched with Revel’s sixth-generation Acoustic Lens waveguide, precision-cast in ceramic-coated aluminum. Together, they deliver improved directivity control, higher efficiency, and reduced distortion—resulting in clean, detailed high frequencies across a wide listening window.

Engineered for Effortless Dynamics

The integration of the tweeter and waveguide with the companion midrange driver ensures a seamless transition across the frequency range, maintaining clarity and coherence even at high output levels. With increased power handling and lower distortion compared to traditional aluminum or titanium designs, the F328Be is ideal for large rooms or reference-level two-channel systems.

Features

• 1" beryllium dome tweeter
• Sixth-generation Acoustic Lens Waveguide
• Deep ceramic composite (DCC) cone midrange and woofers
• High-order crossovers with film capacitors and air core inductors
• Magnetically attached grilles

Specifications

Type: Three-way triple 8" floorstanding loudspeaker

Drivers
HF: 1" beryllium dome, with acoustic lens waveguide
Mid: 5-1/4" deep ceramic composite aluminum cone, with cast frame
LF: 3 x 8" deep ceramic composite aluminum cones, with cast frames

Nominal Impedance: 8 Ω

Sensitivity: 91 dB

Crossover Frequencies: 240 Hz, 2.1 kHz

Dimensions (WHD): 13.5" x 50.9" x 17.6" (343 x 1293 x 447 mm)

Weight: 90 lb. (40.8 kg)
