Pro-Ject Phono Box DS2 Phonostage

Premium class phono preamplifier with MM & MC capability

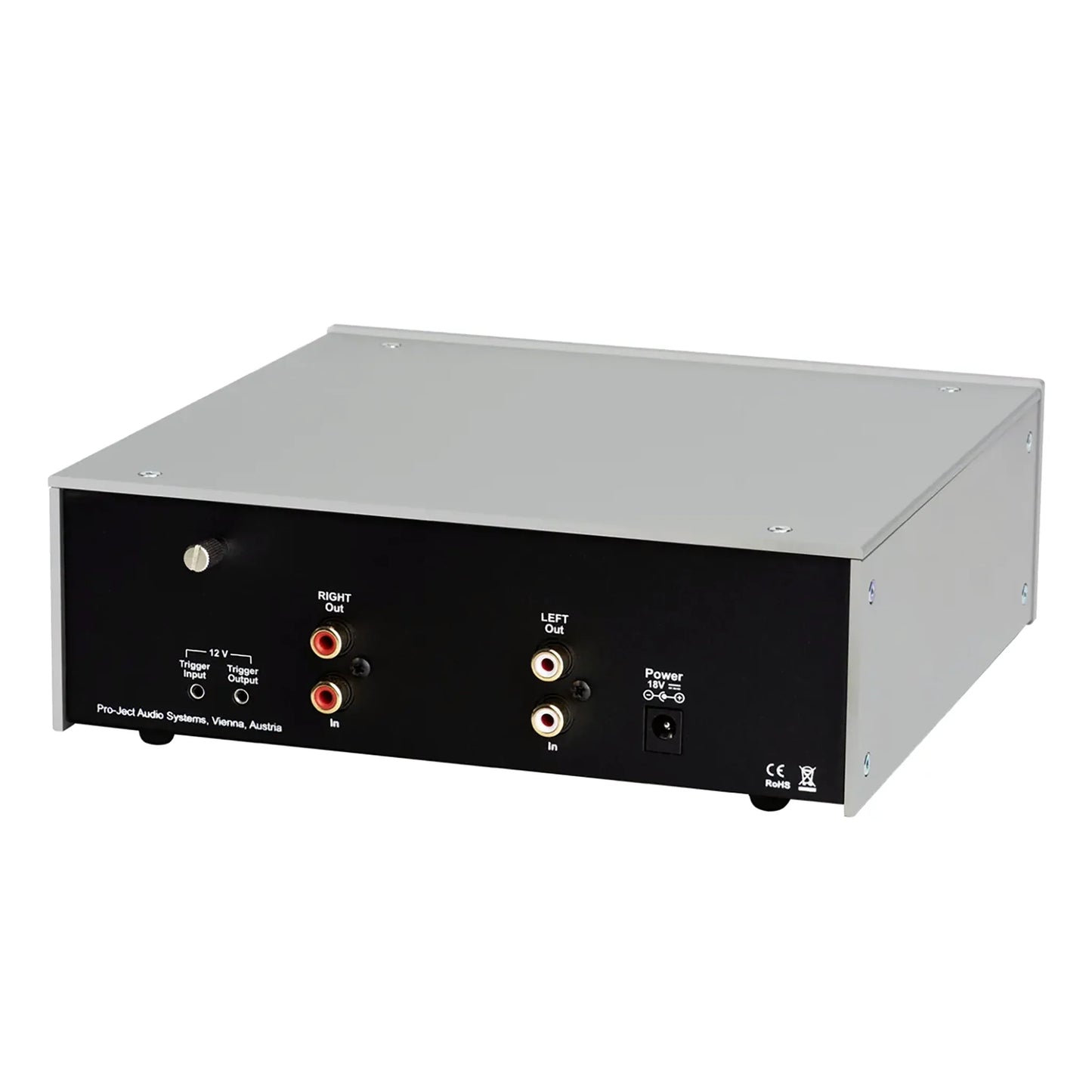

Phono Box DS2 is a highly adjustable phono preamplifier suitable for all common MM and MC cartridges. With the ability to switch easily between input impedance and capacitance, as well as gain on the front it becomes one of the most user-friendly phonostages at this price point. It features one pair of RCA inputs for your turntable and one pair of RCA outputs which will be connected to your pre-amplifier or integrated amplifier.

The casing is made of a durable aluminum metal sandwich construction, which protects against electromagnetic interferences and vibrations. Phono Box DS2 features a very linear circuit design to deliver the best possible sound from a minimalistic PCB. With its high-value sonics and low-cost price it becomes an audiophile bargain!

Features

  • Suitable for MM and MC cartridges
  • Precise RIAA equalization
  • Dual mono circuitry for optimized channel separation

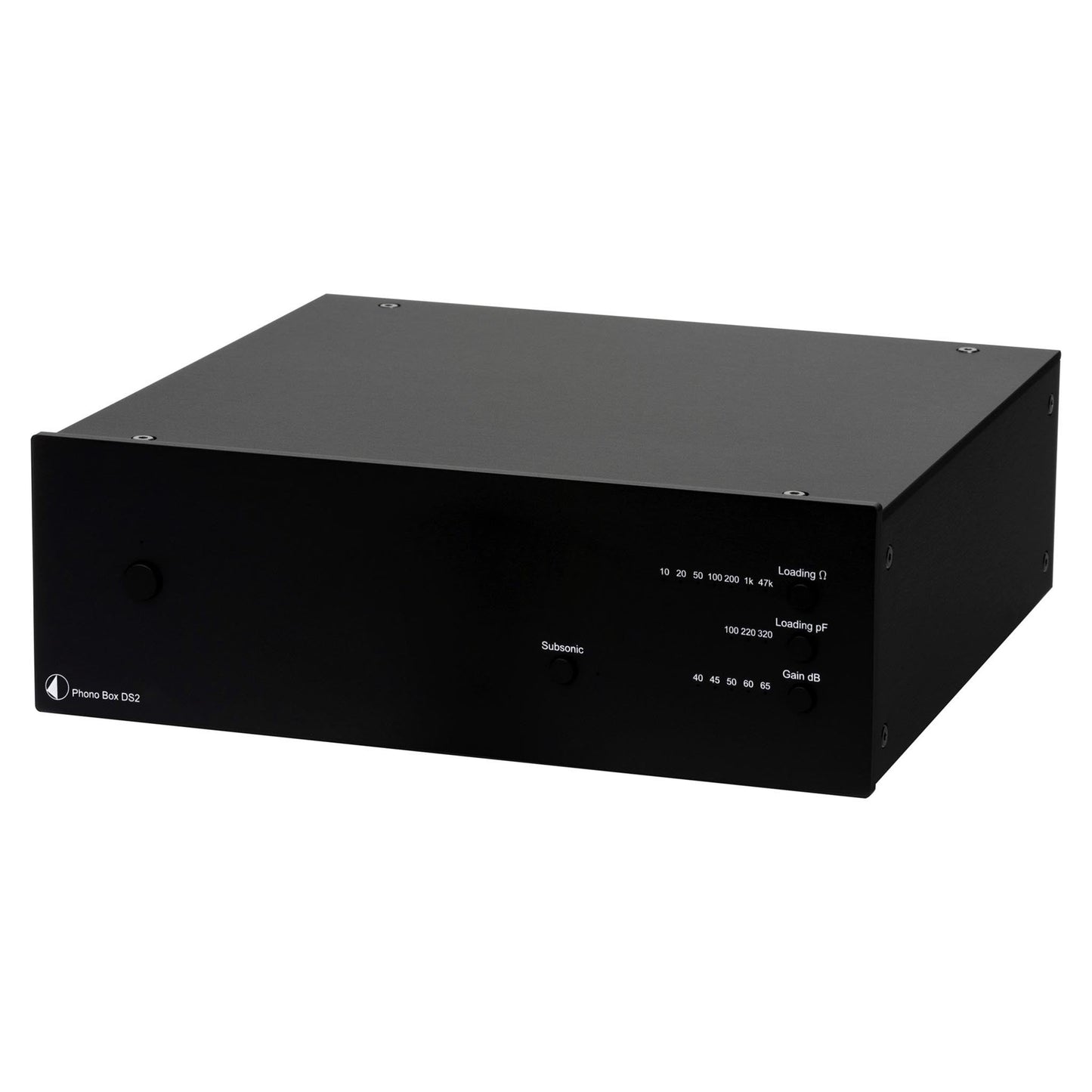

  • Selectable input impedance on front
  • Selectable input capacitance on front
  • Low noise ICs
  • Gold-plated RCA in & outputs
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference
  • Colour options: silver and black

Specifications

Input impedance: 10-47 kOhm
Capacitance: 100/220/320 pF
Gain: 40/45/50/60/65 dB
Output voltage: 500 mV @ 1 kHz (at 5 mV input voltage @ 1 kHz)
Noise floor: -80 dB V
THD+N: < 0.02%
THD: 0.0008%
RIAA equalisation curve accuracy: Within 0.5dB/20Hz - 20kHz
Inputs: 1 pair RCA
Outputs: 1 pair RCA
Power supply: 18 V/500 mA DC; 110 - 240 V, 50/60 Hz
Power consumption: 100 mA DC, < 1 W standby
Alu Dimensions (WHD): 8.1" x 2.79" x 7.63" (206 x 71 x 194 mm)
Wood Dimensions (WHD): 9.45" x 2.83" x 7.63" (240 x 72 x 194 mm)
Weight, without PSU (Alu/Wood): 2.9 lb (1320 g) / 3.9 lb (1770 g)
