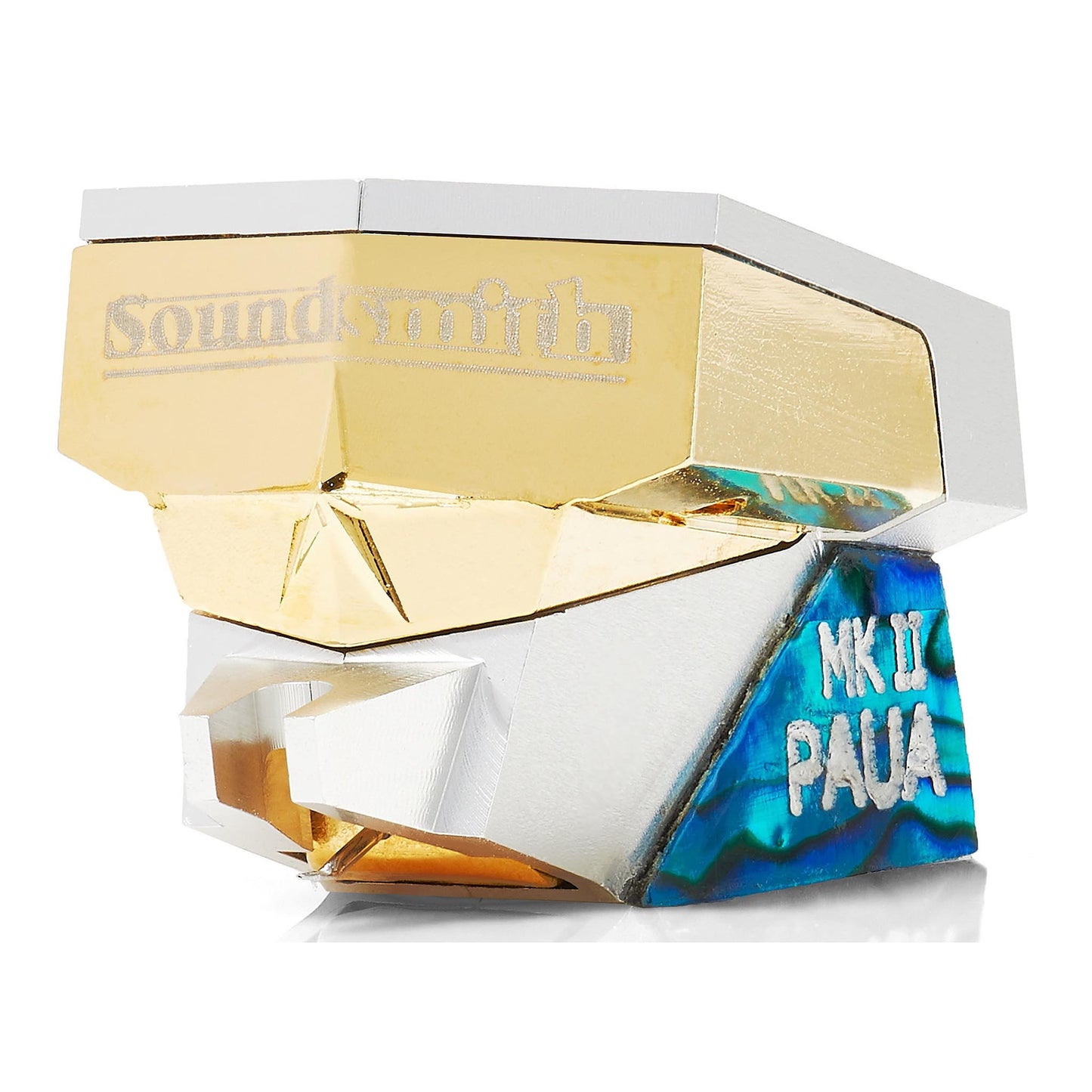

Soundsmith Paua Mk II ES Moving Iron Cartridge

  • Sale
  • Regular price $3,999.95


Soundsmith Paua Mk II ES

New ES Series DEMS Design

Made in  the USA. Rebuild Price? ~  $550 ~  Less than 20% of MSRP, as always ! - Includes a two-year warranty for original owner!

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

Derived from the acclaimed Sussurro Cartridge, The Soundsmith Paua (pronounced POWah) Moving Iron Cartridge delivers a level of performance that rivals the world's most celebrated moving-coil cartridges for a mere fraction of the cost!

The Paua is one of Soundsmith's most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Now we introduce the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII's cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The result is an even better Paua, a cartridge that gets raves from its owners!

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

Soundsmith has accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

What is DEMS?

“Sometimes you can judge a book by its cover.” – Peter Ledermann.

2018’s RMAF show was the official launch of Soundsmith’s new ES series of cartridges, where the attendees experienced the latest exploration into overlooked areas of cartridge design and solutions from Soundsmith.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls — a critically important technical refinement. Increased liquidity and reduced “grain,” without loss of detail are some of the immediately discernible advantages of Soundsmith’s new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems.

Every cartridge in Soundsmith’s lineup will now feature our sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and “boxy” design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely effecting performance. Peter says, “Think of how singing in an open field compares with singing in a shower.” Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.



"If I had to live with just one cartridge, I would choose the Paua..." - Jeff Dorgay, TONE Audio

Specifications:
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended Tracking force: 1.7 to 1.9 Grams
Effective tip mass: 0.30 mg
Compliance: 10µm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo)
Output Voltage: 0.4 mV
DC Resistance (DCR): 10-11 O each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Recommended Loading:  470 Ohms
