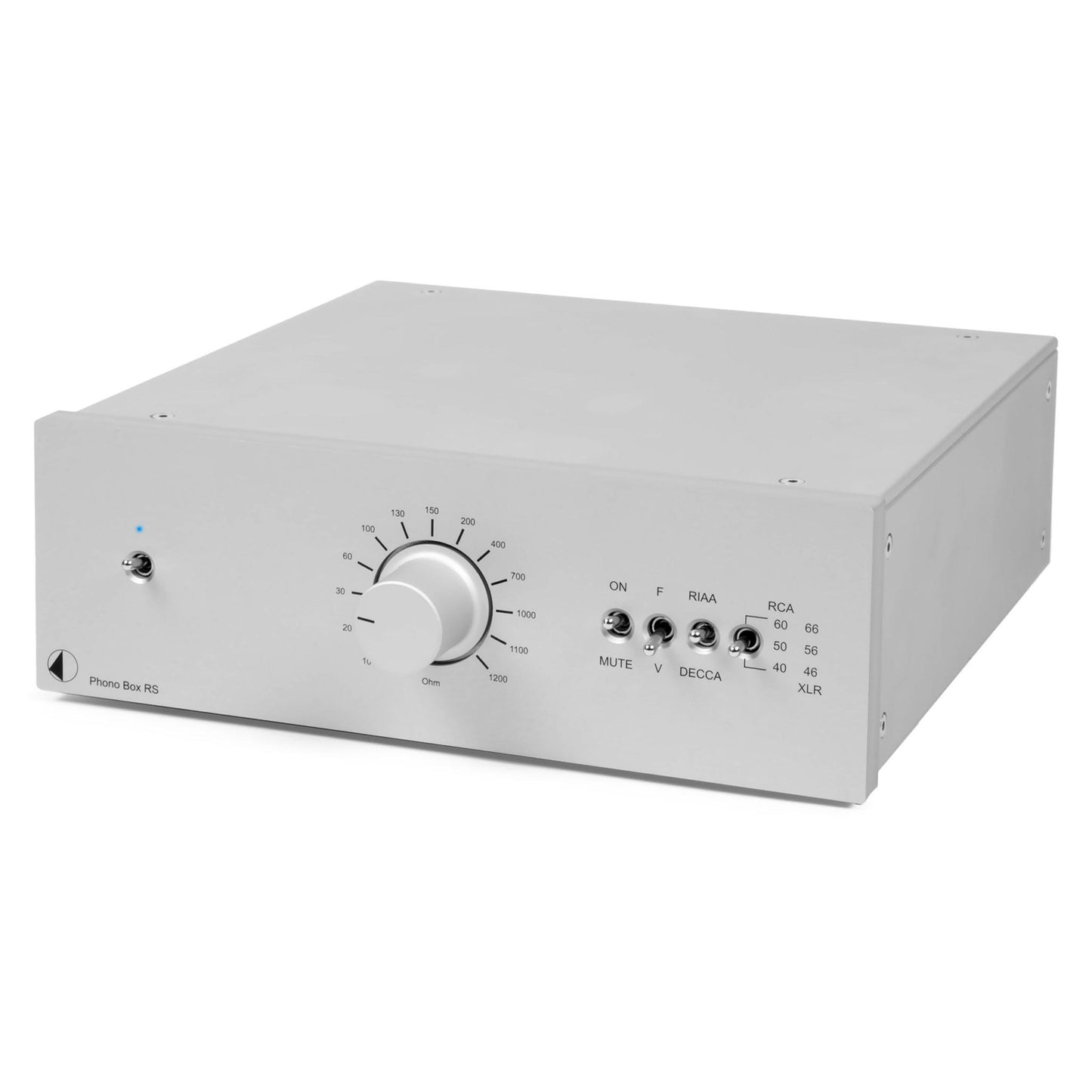

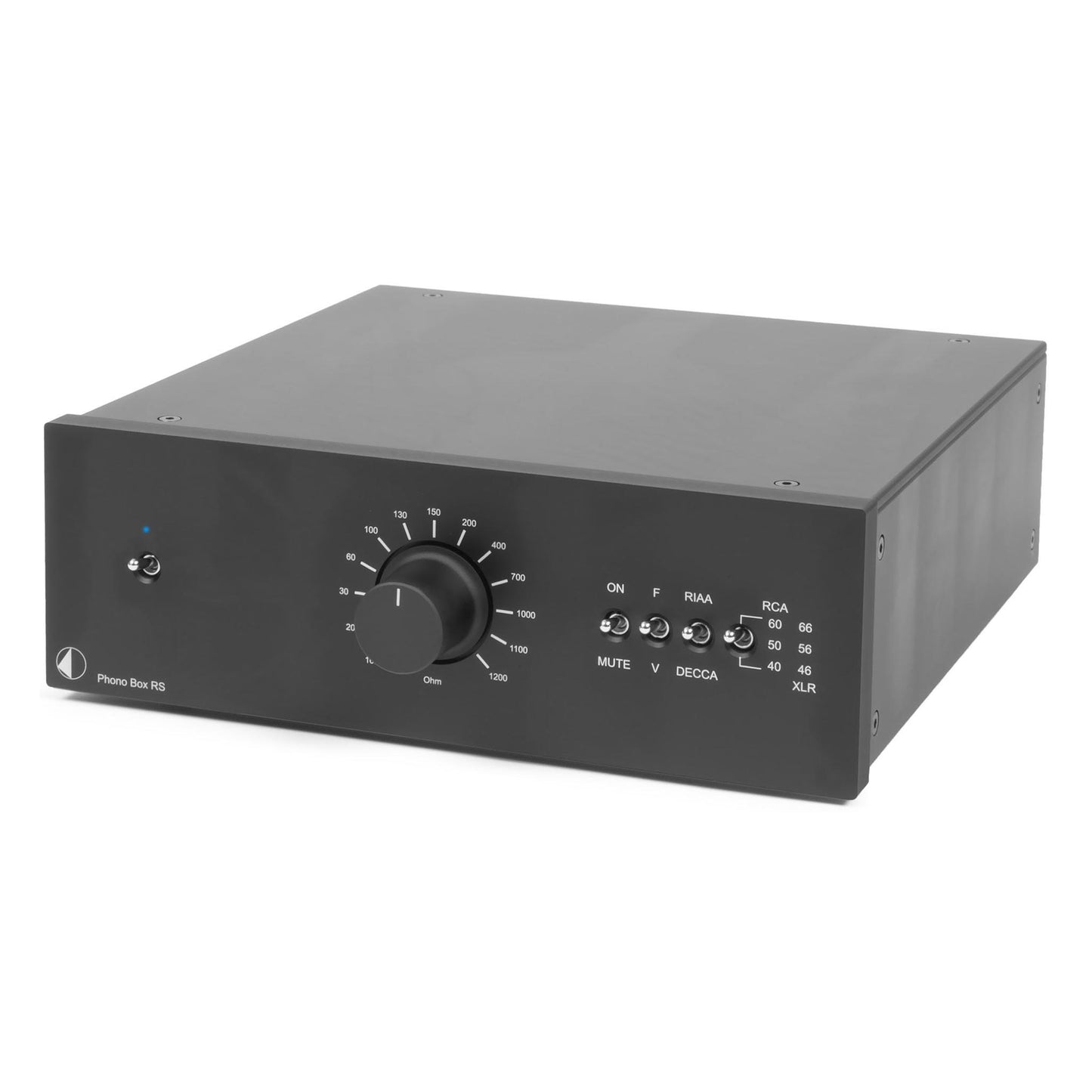

Pro-Ject Phono Box RS

  • Sale
  • Regular price $999.00


Pro-Ject Phono Box RS

The Phono Box RS is an ultra-low noise and distortion phono preamplifier for the analog audio purist. Designed to deliver breathtaking performance from your phono cartridge trough the availability of an unprecedented range of adjustments. Proper impedance matching is key to great sound and the Phono Box RS provides the ability to continulessly vary impedance from 10-1,200 ohms, even during playback! Top grade component parts are used throughout the dual mono circuit topology ensuring exceptional quietness and purity of sound. Unique features include a fully passive selectable RIAA and DECCA phono equalization circuit, full compatibility with MC and MM cartridges via selectable load capacitance and fully balanced inputs and outputs. Heavily shielded chassis metalwork is used to protect against the negative effects of vibration and electrical interference. The Phono Box RS is a high-performance value ‐ rarely is there a product that delivers such clear, detailed and smooth sound from vinyl records at such a modest price.

TECHNICAL SPECIFICATIONS

Input Impedance Variable: Stepless 10 ohms ‐ 1,200 ohms A *
Input Capacitance / Impedance Variable: 100pF, 200pF, 300pF, 420pF and 520pF/47k ohms B
Input Impedance Fixed: 10 ohms A *
Input Gain (+ 6dB using XLR) 40dB and 50dB B / 60dB A
Noise Floor 80dB (91dB ‐ IEC -A)
THD < 0.019%
RIAA EQ Curve Accuracy 20 Hz - 20 kHz / max 0.3 dB
Subsonic Filter at 20Hz with 12dB/octave

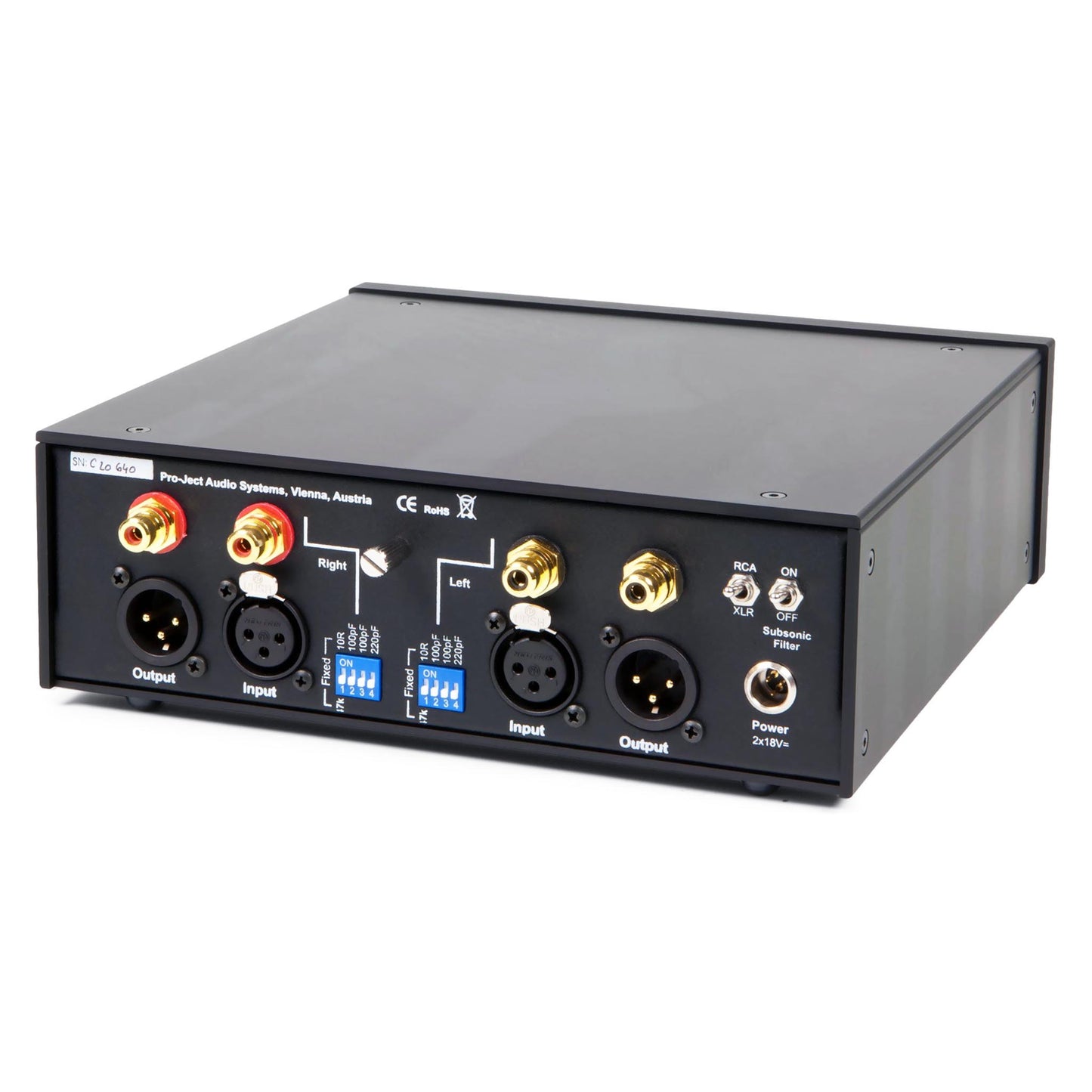

Input 1 pair RCA Jacks, 1 pair XLR
Power Supply 2 x 18V/250mA DC
Power Consumption 150mA DC, <1W in standby
Dimensions (WHD)
8.1 x 2.9 x 7.9 in., 206 x 72 x 200 mm
Weight
4.4 lbs., 2.000g without power supply
Finish
Black or silver
