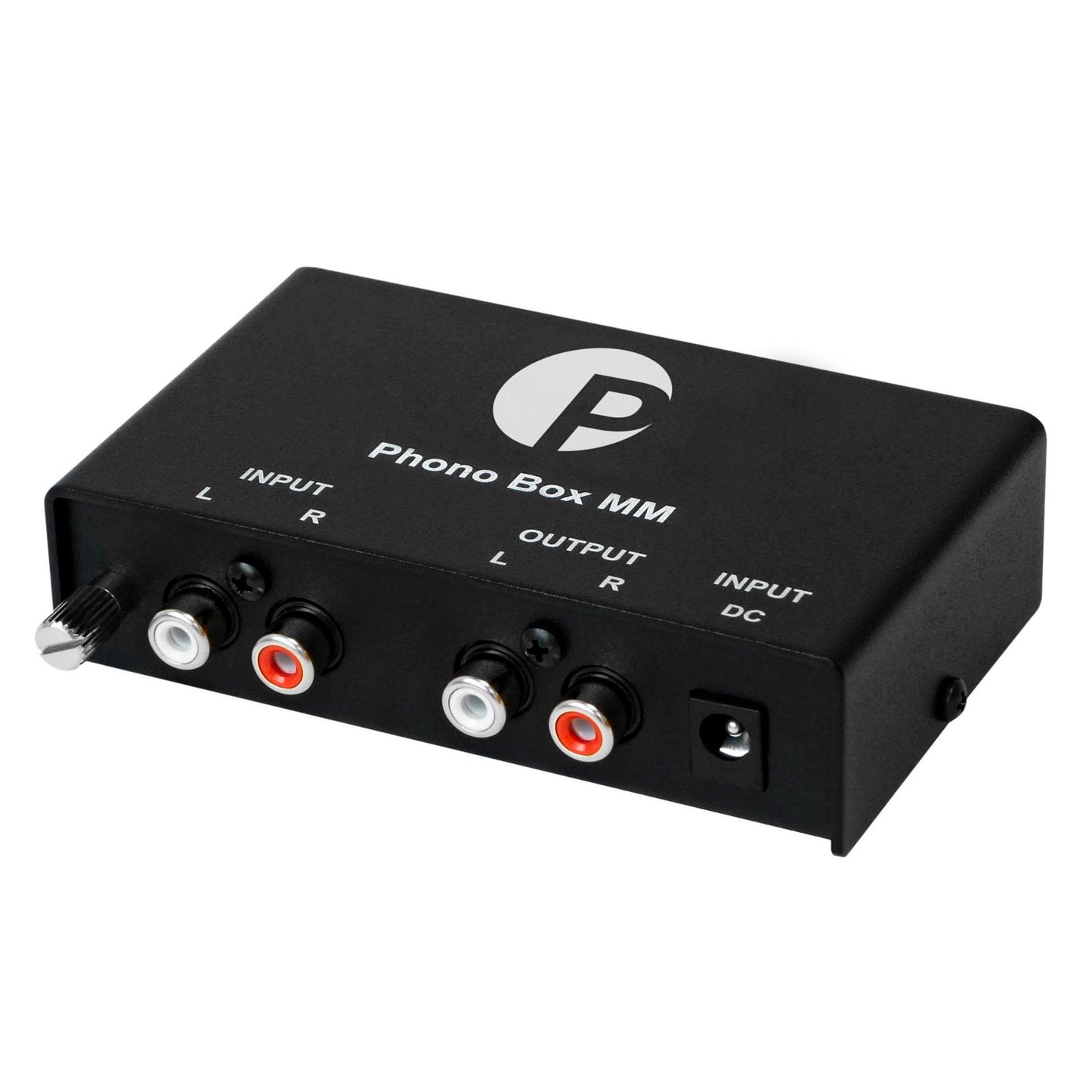

The Pro-Ject Phono Box MM is a cost effective way to interface a turntable to a preamplifier, integrated amplifier or receiver that provides only line-level inputs. Low noise, low distortion and a flat RIAA equalization curve with 32dB gain for moving magnet cartridges. An outboard power supply is included.
Input Impedence 47k ohms / 100pF
Output Voltage 200mV / 1 kHz at 5mV
Signal-to-Noise Ratio 82 dB (88 dB / A-weighted)
RIAA Accuracy 0.5dB / 20 Hz - 20 kHz max.
Input 1 pr. RCA Jacks
Output 1 pr. RCA Jacks
Power Supply 16V DC / 200 mA AC
Power Consumption 16V / 40 mA AC
Dimensions (WHD) 4.2 x 1.2 x 2.4 in., 107 x 30 x 61 mm
Weight 9.9 oz., 280 g
