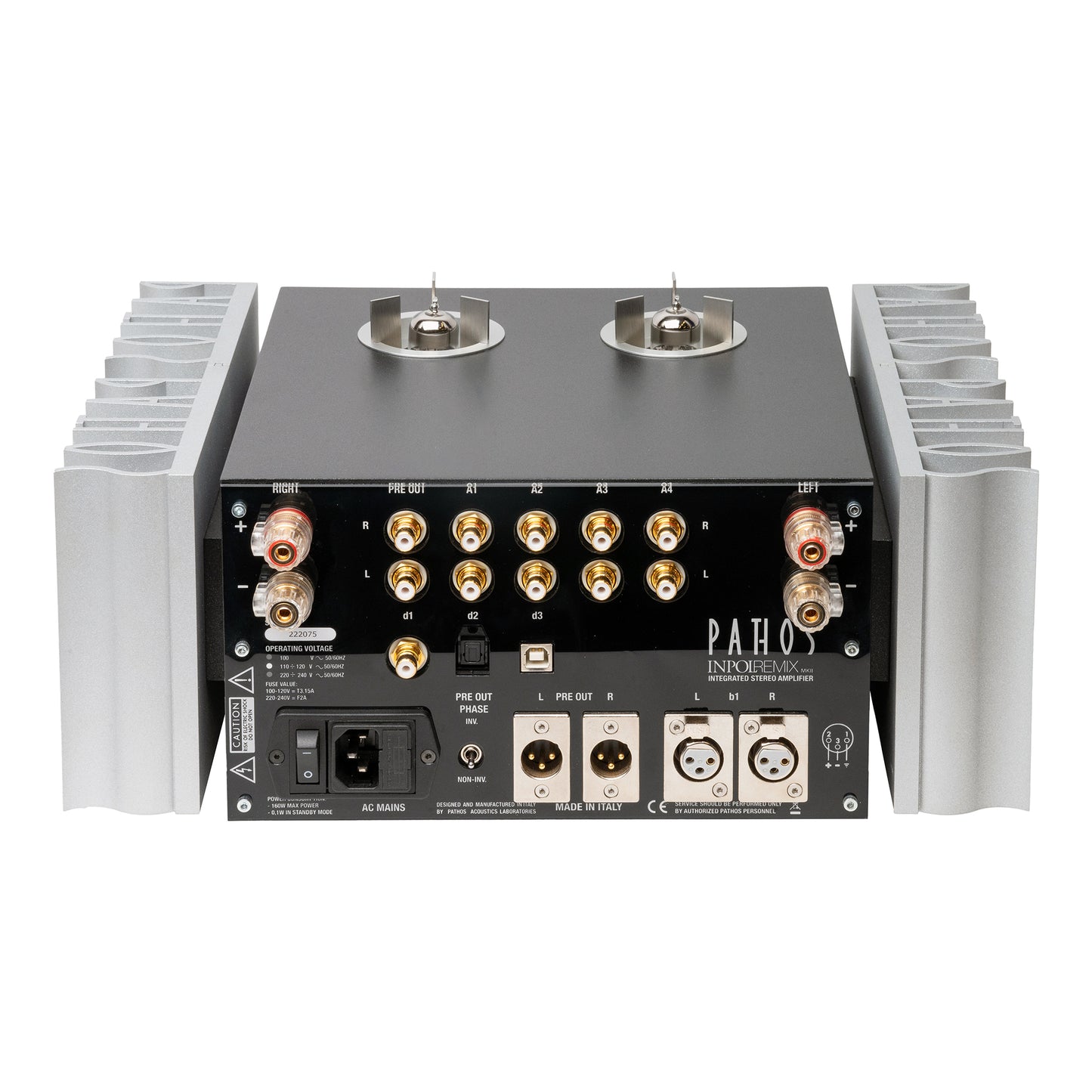

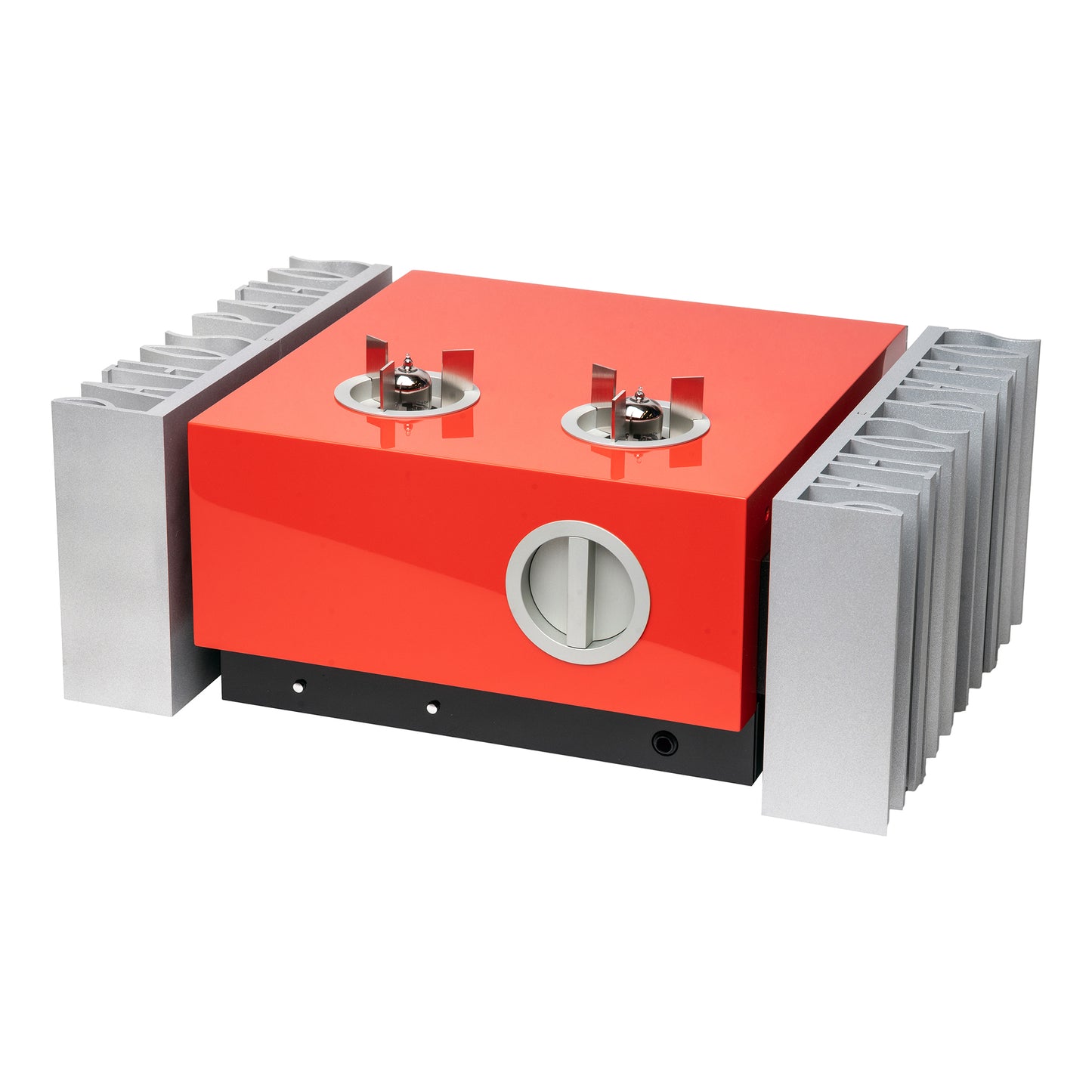

Pathos InPol Remix Mk II Tube Hybrid Integrated Amplifier
A fully-balanced pure class-A integrated amplifier using the latest generation double-InPol circuitry. The digital bias/gain set technology with intelligent control is entrusted to the same microprocessor that regulates the volume, thus guaranteeing the performance of the amplifier and its ability to drive the loudspeakers efficiently.
The optional HiDac Mk2 converter offers a high-quality on-board DAC with digital inputs.
InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a Pathos patented system that allows for much greater output in pure class-A. This fully balanced circuit design uses a single solid-state component in follower configuration, with a high-current gain and voltage gain together.
The tube amplifier amplifies the input signal voltage, and InPol supplies the current to drive the loudspeakers without any further amplification. The technology allows an increase in the theoretical output in pure class-A of between 25% and 50%. Together with a low output impedance and a double InPol circuit, the amplifier offers a high damping factor for immense control over the loudspeaker drivers.
Type: Stereo integrated amplifier, pure class A with double INPOL technology, fully balanced, digital bias/gain set technology
Output power: 2 x 25 W @ 8 ohm, 2 x 38 W @ 4 ohm
Frequency response: 2 Hz – 150 kHz ± 0.5 db
Input sensitivity: 470 mVRMS
Input impedance: 47 kOhm
Output polarity: Selectable by remote control
Volume regulator: 2 x Burr Brown PGA2310 (180 steps 0.5 dB)
THD: 0.1% @ 25 W
S/N ratio: > 100 dB
Gain: 31 db unbalanced, 37 db balanced
Output impedance: 0.9 Ω
Analog line inputs: 1 x balanced XLR, 4 x RCA
Digital inputs (with optional HiDac Mk2 board): 1 x USB B, 1 x S/PDIF coaxial, 1 x S/PDIF optical
Outputs: 1 x pre out RCA, 1 x pre out XLR, 1 x 6.3 mm headphone
Output power: 2.65 W @ 32 Ω
Output impedance: 0.45 Ω
Max output level: 9.6 VRMS
Frequency response: 2 Hz - 400 kHz ± 0.5 db
Dimensions: 370mm (D) x 280mm (W) x 180mm (H)
Weight: 13.5 lb (13.5 kg)
