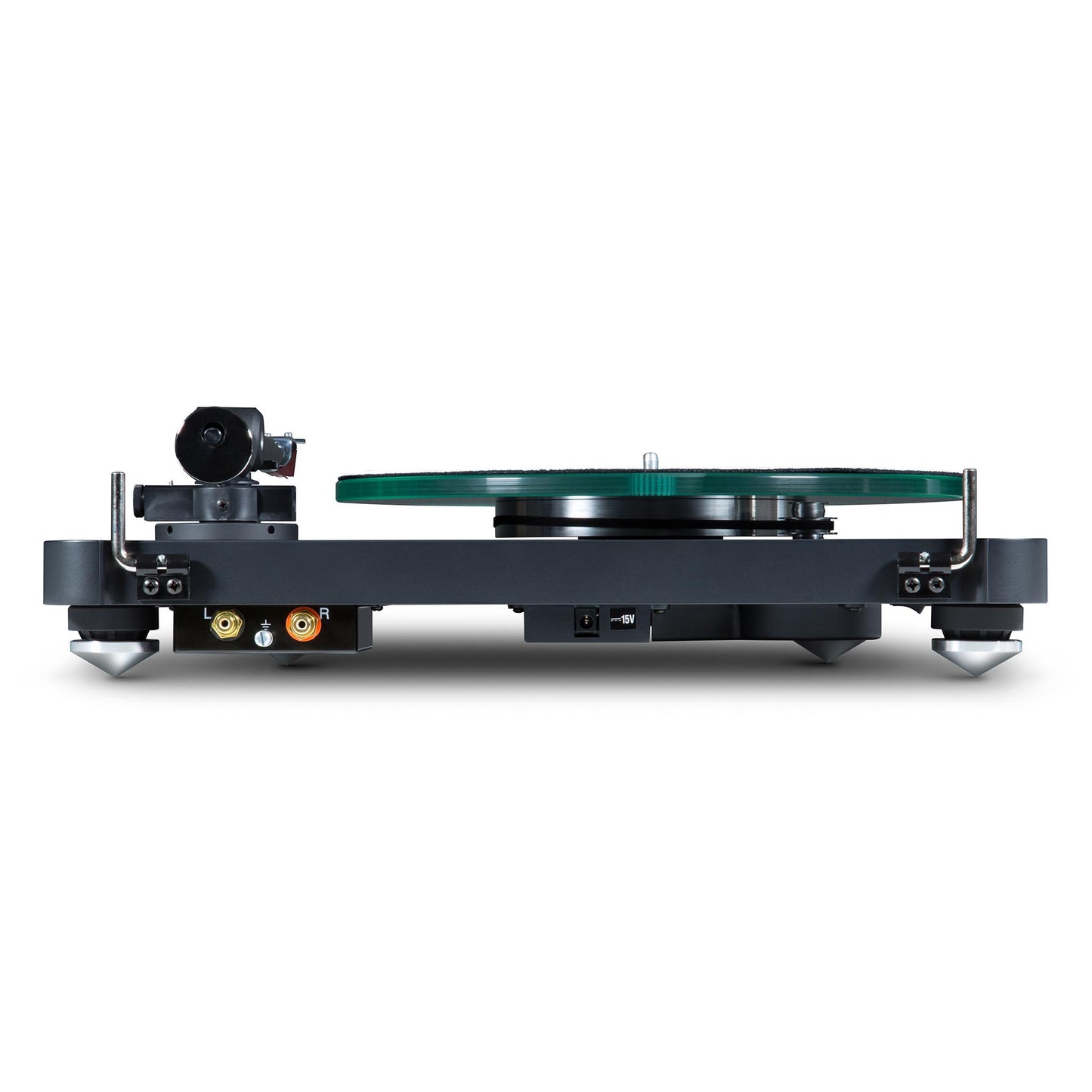

NAD C588 Turntable

NAD is well known for innovative, high-performance, yet affordable, turntables.

Features

  • Belt-driven turntable 33/45
  • 10mm glass platter with felt pad
  • Precision alloy sub-platter
  • Precision AC motor
  • Isolated AC power supply with universal voltage
  • 9” Carbon-fibre tonearm with fixed head shell
  • Ortofon 2M Red cartridge preinstalled
  • Vertical tracking angle and azimuth adjustment
  • Rigid MDF plinth
  • Metal feet with tuned isolation
  • Low resonance dustcover
  • Detachable high-quality RCA cable with separate ground

Specifications

Turntable
Nominal speed: 33/45 rpm, manual speed change
(78 rpm possible with special pulley)
Speed variance: 33 rpm: < ± 0.35%, 45 rpm: < ± 0.30%
Wow and flutter: <0.01% (ref. 1 kHz, Audio LPF)
Signal/Noise ratio: –70 dB
Downforce range: 0 – 30 mN, 0 – 3.0 g
Supplied counterweight system: Counterweight for cartridges: 6 – 13 g
Voltage: Universal switch mode power supply, 15 V DC/0.8 A, 100-240 V AC, 47 – 63 Hz
Power consumption: 5 W max/ 0.3 W standby
Gross dimensions (WHD): 17 1/8 x 13 7/16 x 4 15/16" (435 x 340 x 125mm)
Shipping weight: 20.3 lb (9.2 kg)

Tonearm
Effective tonearm mass: 9.5 g
Effective tonearm length: 230 mm
Overhang:18 mm

Ortofon 2M Red Cartridge
Frequency range: 20-22,000 Hz
Channel separation: 22 dB / 1 kHz
Output voltage: 5.5 mV
Recommended load impedance: 47 kohm (MM-input)
Compliance/stylus type: 20 μm/mN – elliptical
Recommended tracking force: 18 mN
Weight: 7.2 g
