Drachenfels Headphone Amplifier
Analogue? Digital? Drachenfels!
The modular design with cutting-edge components opens long-term perspectives for quality-minded music lovers who have demands on sustainability. No matter if streaming via WLAN or ethernet, linking Bluetooth sources or conventional digital players – owing to modular pc boards, which are available at short notice, the Drachenfels gives the right answer to all of these requirements. Even with the advent of new digital standards, a simple swapping of both module and rear panel will enable an upgrade!
The Drachenfels offers 12dB of practice-oriented gain which, due to the smooth running ALPS Blue Velvet potentiometer with excellent synchronism and the ultra low-noise circuit, dispenses with the need for a gain switch. The power switch located on the front reduces the power consumption in standby mode to an eco-friendly value of less than 1 W. Moreover, its space-saving dimensions offer you plenty of placing options for the Drachenfels. Use it as a headphone amplifier or preamp and discover the happiness of intense music listening.
|Input impedance||47 kohms|
|Maximum gain||12 dB with maximum potentiometer setting|
|Frequency response||10 Hz (-0.3 dB) to 35 kHz (-1 dB)|
|Signal to noise ratio||> 85 dB at gain 0 dB|
|THD||< 0,006 % at 18 mW/330 ohms|
|Channel separation||> 80 dB at 10 kHz|
|Output power||330 ohms/110 mW
33 ohms/180 mW
|Output impedance||Line out 105 ohms
Phones out 5 ohms
|Connectors audio||Neutrik headphone sockets with gold-plated contacts
1 x switching line out
1 x non-switching line out

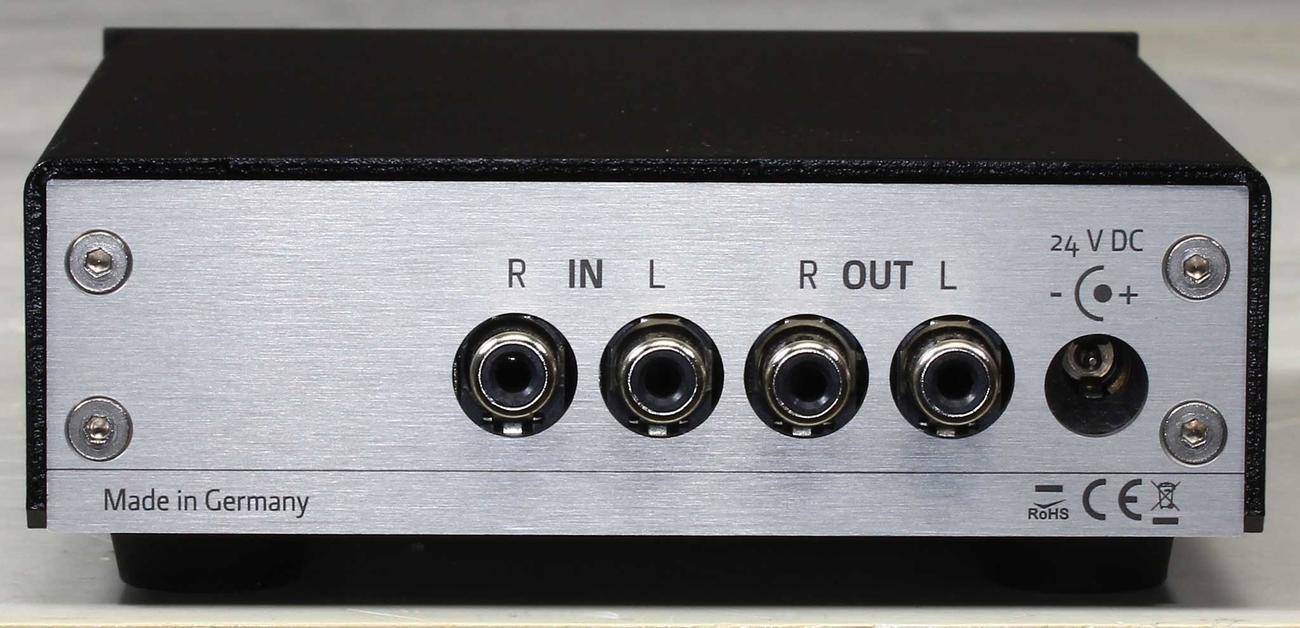

Line in/line out: RCA
|Power consumption||app. 4 W through external wide range wall power supply (without any optional pc board)|
|Outer dimensions W x D x H||160 mm x 120 mm x 43 mm (audio section)|
|Weight||0.5 kg (1.1 lbs.) net (audio section)|
